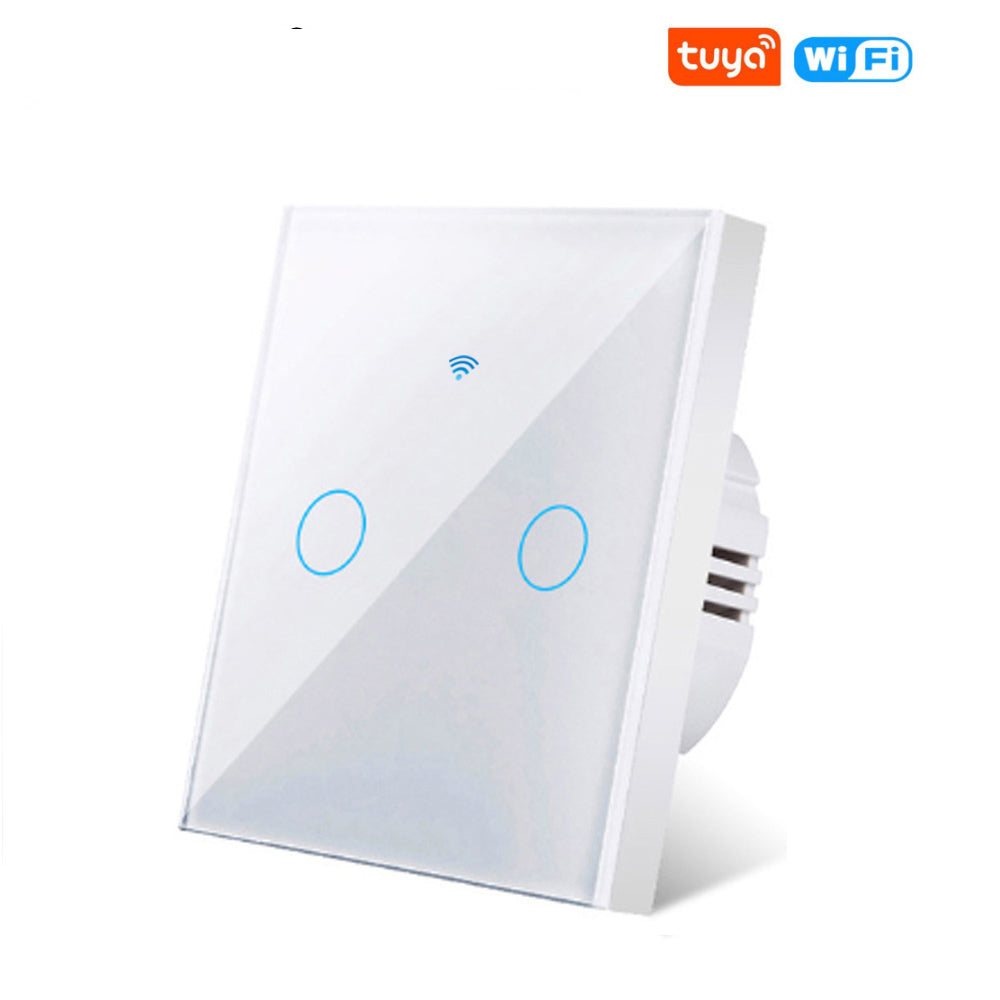

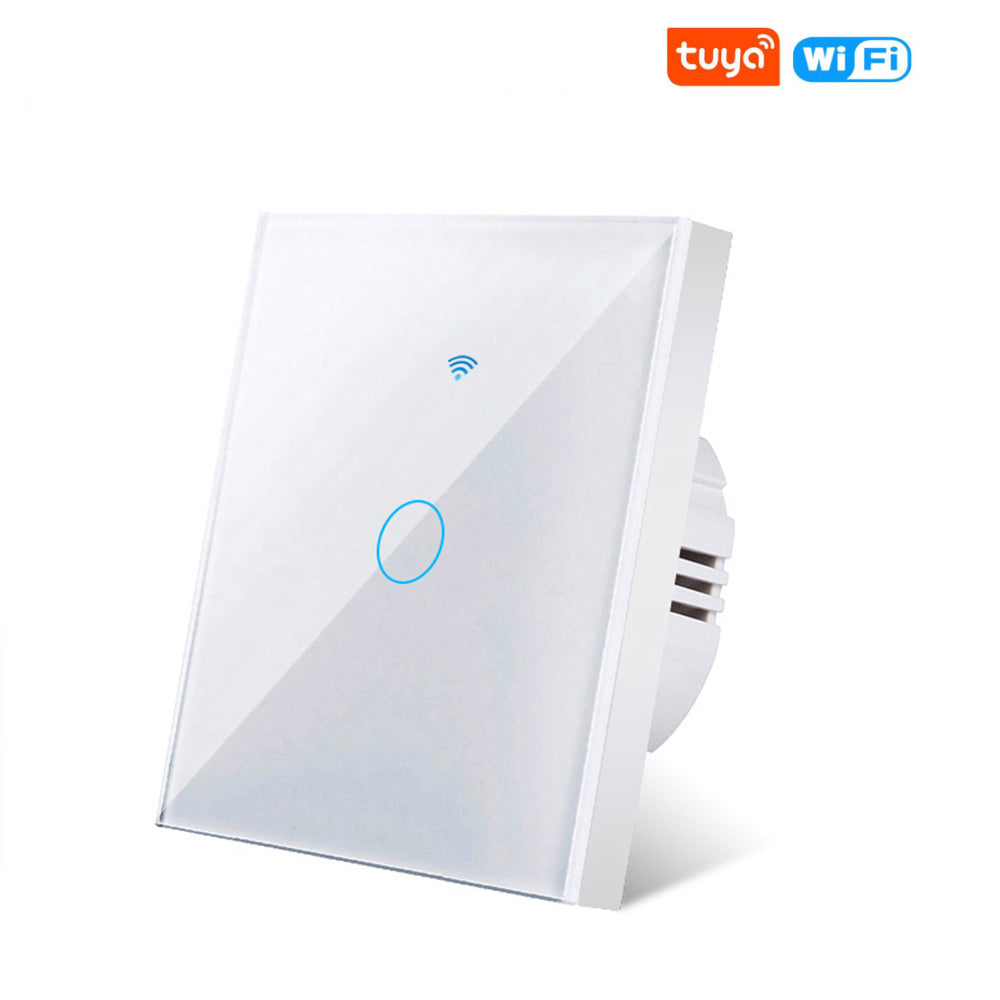

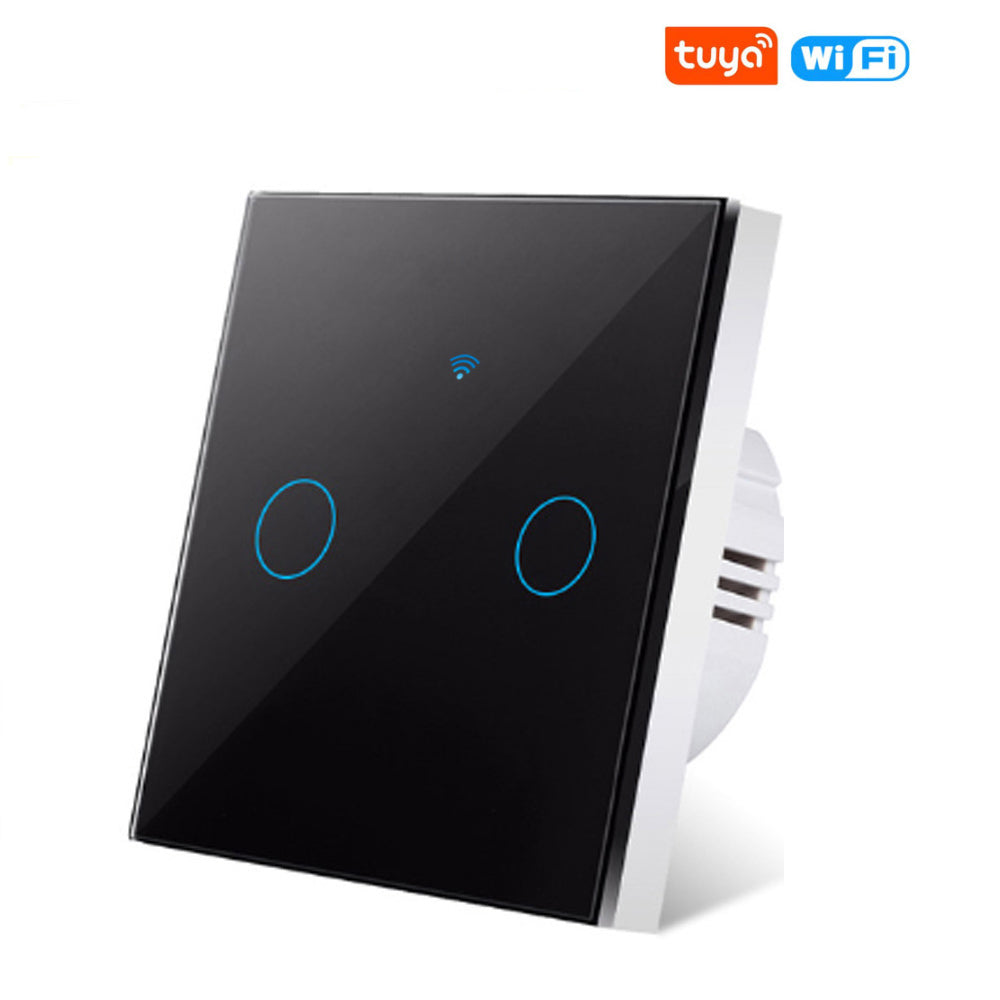

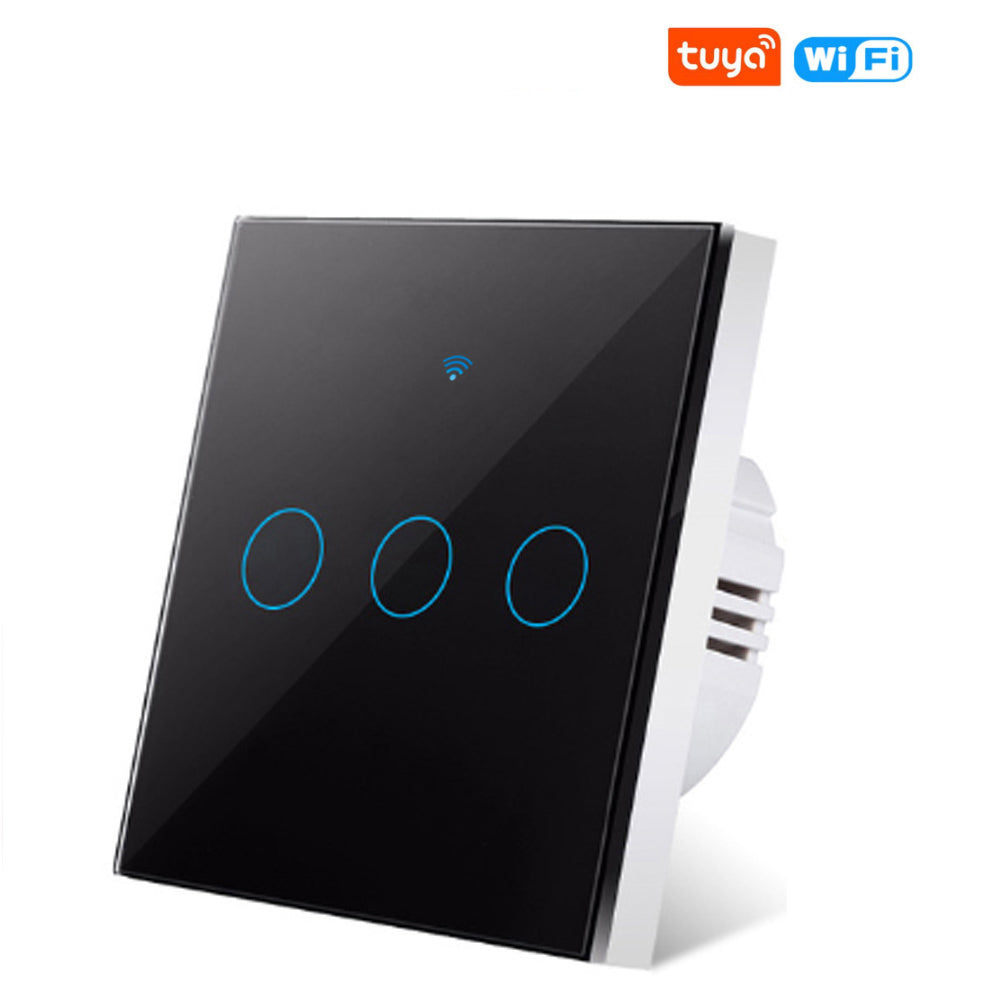

Specification

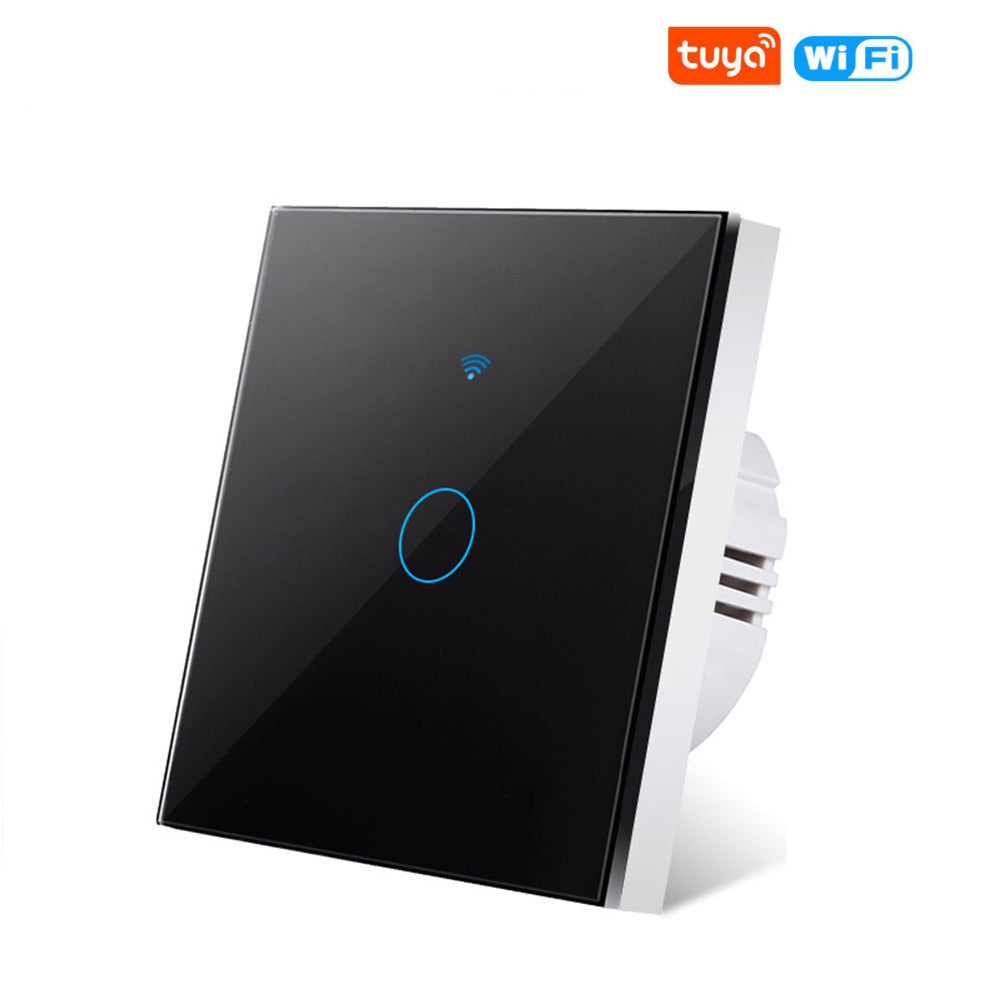

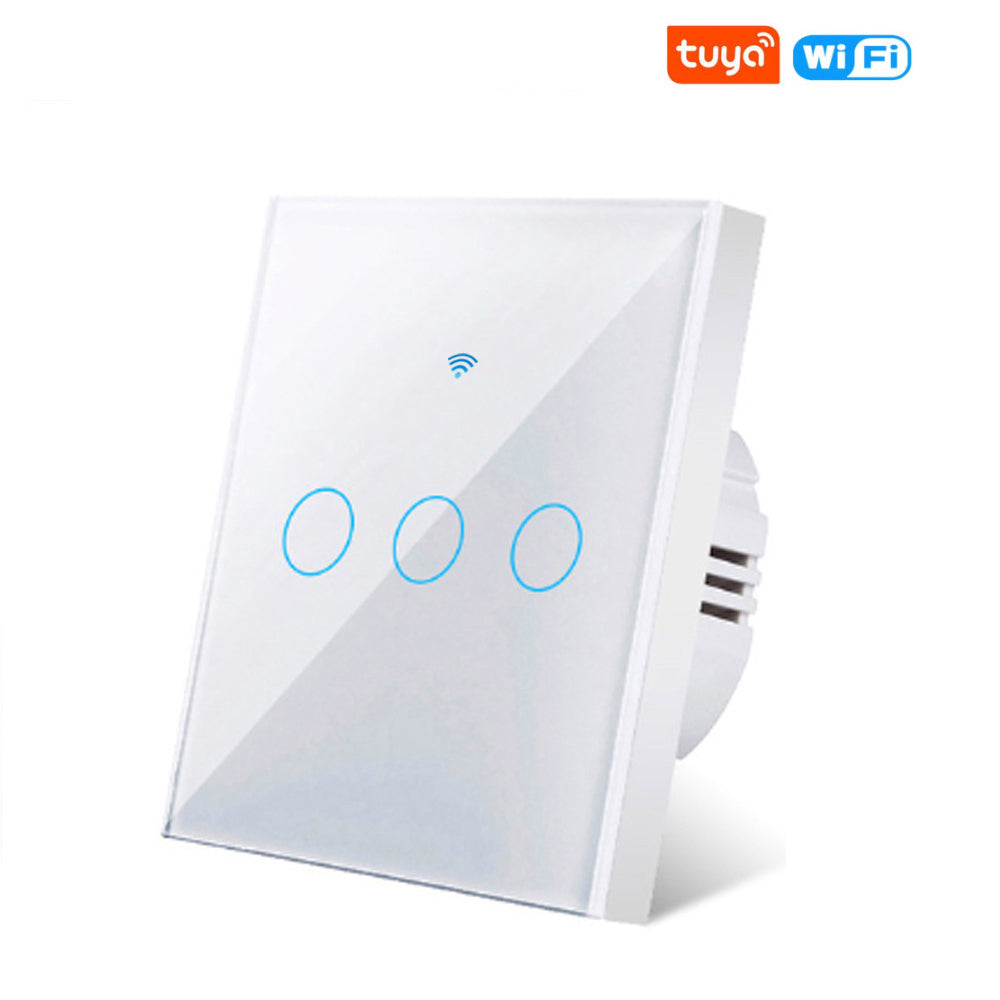

Color: White/Black
Material: PC+ Toughened Glass Panel
Voltage: 100-250V 50/60Hz
Current: 10A
Rated Load: 5-150W/Gang
Power Consumption: ≤0.5W
Working Temperature: 0℃~40℃
RF: 433MHz
RF Standard Code: 1527
WIFI Standard: IEEE 802.11bgn 2.4Ghz
Support System: Above iOS 8.0 or Android 4.3
Hub Requirement: No
Network Security: WPA/WPA2”
Control Mode: APP/RF/Manual
Certification: FCC, CE, RoHS
APP: Tuya Smart/Smart Life
Safety and Certification
The wall switch adopts premium materials, such as fire-resistant shell, phosphor bronze connects and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family.
Our all products certificated by CE, FCC, and RoHS. Without using any harmful chemical substances, please fell relived about usage.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
Share Function
haring devices with your family members to eliminate extra steps for connection.
Timer Setting
Setting a schedule or timer on/off your lights on night and morning, and then your will never go back to a dark house when you go back home at dusk. Moreover, you could quietly waked up by scheduled light on every morning.
Voice control

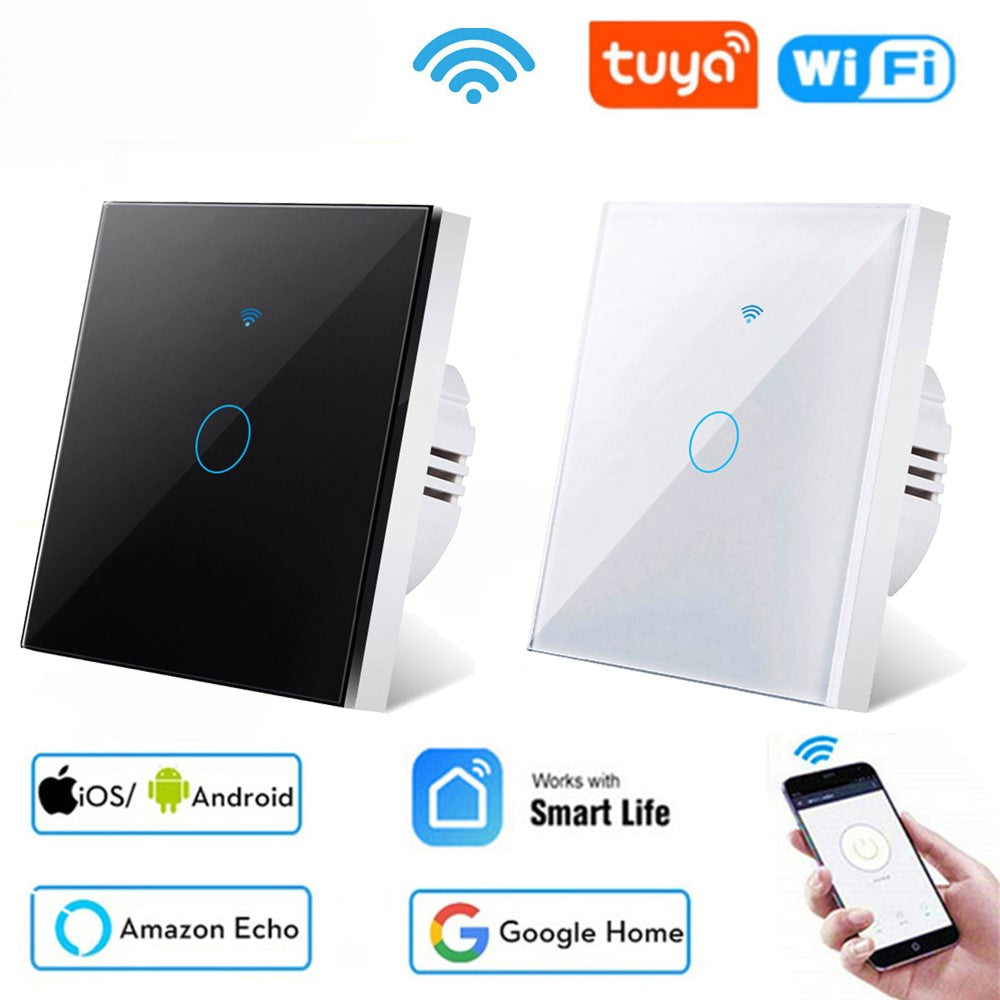

Perfectly Compatible with Alexa and Work with Google Home. Turn on/off lights with voice commands when your hands are full.
App Remote Control
As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the App “Tuya smart or Smart Life”.
RF 433MHz Remote Control
The smart wifi switch could pair with any of 433Mhz RF transmitters. Even if there is no wifi signal at home, the device still could be controlled by RF transmitter.
NOTE
1. Support most of lamps. We suggest to use over 5W LED lamp for L1. Not support dimmable lamps.
2. The capacitor must be connected with L and N of the lamp of L1. Not behind the switch.
3. This switch is single-pole, and it only supports 1 way control.
New Version
1. Upgraded SCR to relay, which has better heat resistance and safety. Also, it works with 100~250V.
2. Upgraded capacitor, which is more powerful and stable.

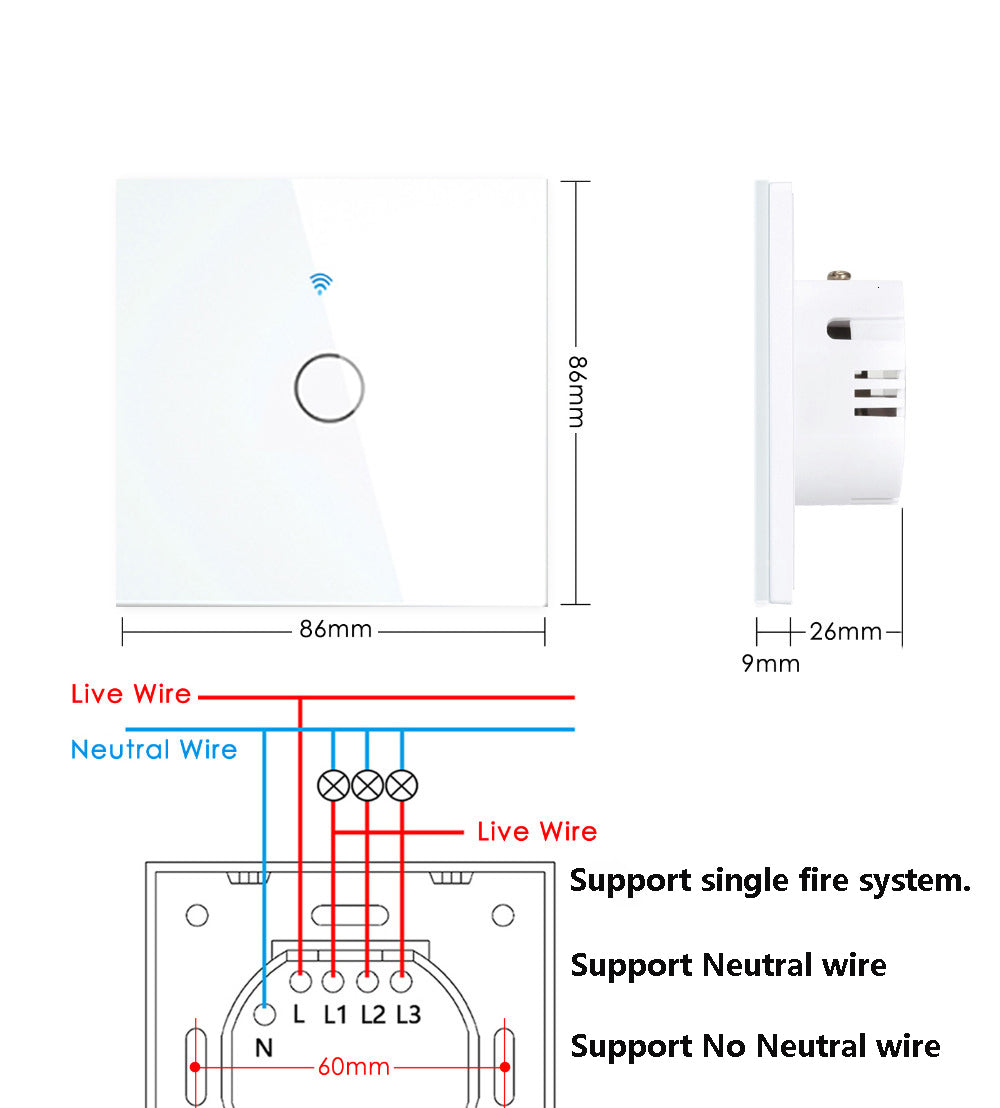

Support line system
【No Neutral Line required 】Support single fire system.
Support Neutral system
Support No Neutral system
Contains capacitors in the package
Note:
1.Please allow 1-3 cm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding
